Switching Power Supply of stepper 350W 24V 14.6A Single Output NES-350-24 for Embroidery Engraver Printer Plasma CNC Router Kits







application



The switching power supply can be widely used in communication, LED display, industrial control and CNC Stepper&Servo System, radio and television, computer network, medical equipment, intelligent monitoring and other fields. 115V and 230V can be selected by switch. Powerful functions and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.





feature



The main feature of 350W 24V Single Output Switching Power Supply:

  • AC input selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit/ Overload/ Over voltage/ Over temp.
  • Built-in fan ON/OFF control
  • Built-in constant current limiting circuit
  • 100% full load burn-in test
  • LED indicator for power on
  • Low cost, high reliability
  • 2 years warranty



description



  • AC input voltage range: 90-132VAC/180-264VAC selectable by switch
  • DC adjustment range:  ±1.0% rated output range
  • Overload protection: 105%-135% rated output power
  • Over voltage protection: 27.6~32.4V
  • Setup, rise time: 1000ms, 50ms/230VAC, 1000ms, 50ms/115VAC at full load
  • Withstand Voltage: I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC
  • Working temperature: -20~+60C (refer to output derating curve)
  • Safety standards: UL60950-1 approved







data



The specification list of 350W switching power supply:



NES-350-SPEC-1



dimension



NES-350-dim

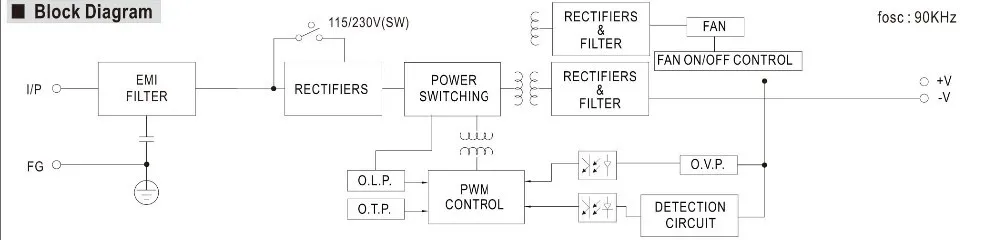

DIAGRAM





NES-350-block

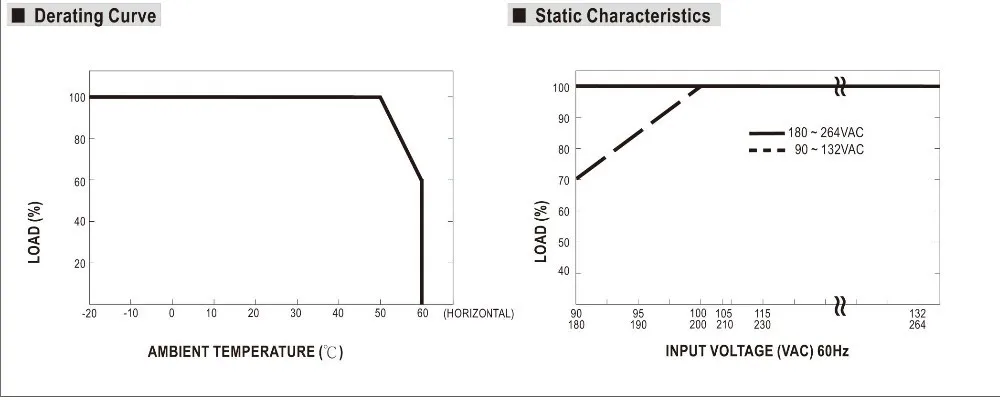

NES-350-curve

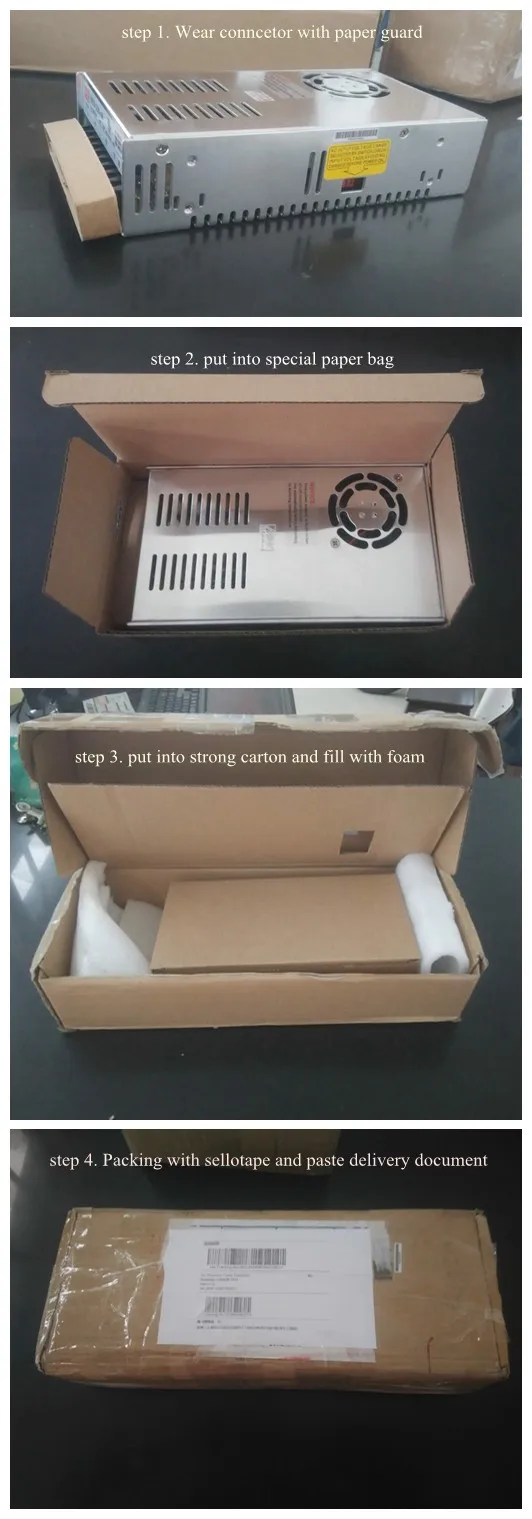

Packing example:

IMG_20150523_163330













  •
