Oписание продукта

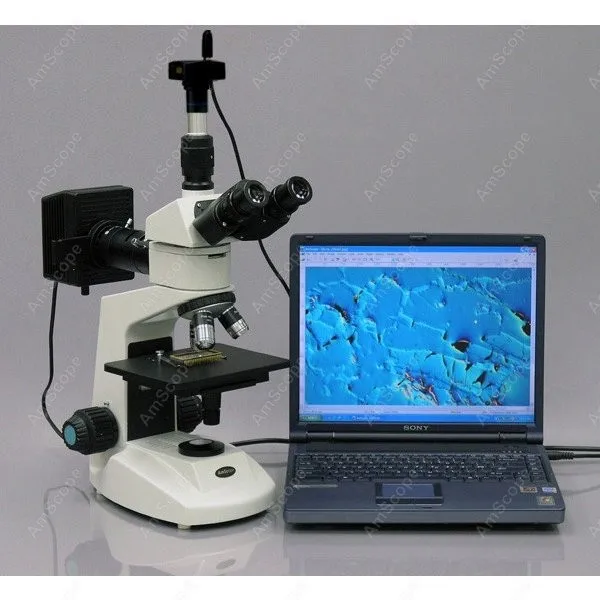

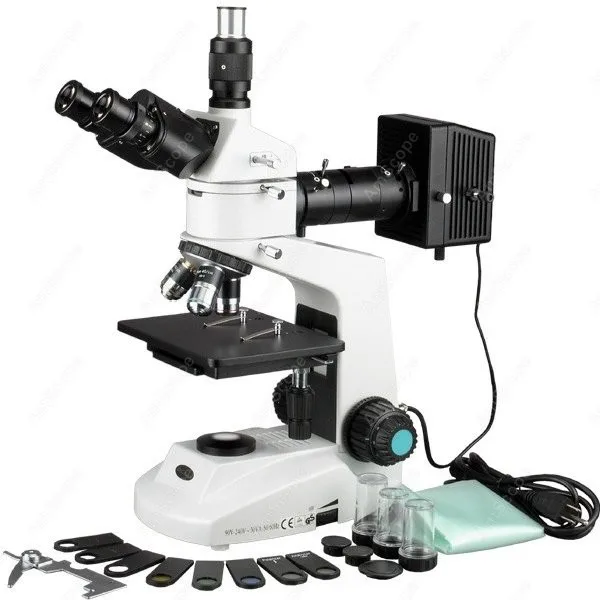

Unlike most other metallurgical microscopes, this model comes with reflected and transmitted illuminations and offers polarizing features, useful for viewing either opaque or transparent materials. It comes with seven objectives (Plan and Achromatic) and two pairs of widefield eyepieces. It offers three metallurgical magnification settings (50X, 100X & 500X), three polarizing powers (50X, 100X, 200X, 500X & 1000X), and four bright field magnifications (40X, 100X, 400X & 1000X). This microscope has a 30 degree inclined 360 degree rotatable trinocular head, coarse & fine focusing, mechanical stage, and wide band voltage (90V-240V) halogen EPI-illumination and transmitted illumination system. It is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, silicon wafer inspection, industrial Inspection, quality control, and foundries. It comes brand new in original box. Its retail value is $4800.

Features :

  • A professional grade metallurgical metallographic microscope with polarizing features for metallurgical applications!
  • EPI-illumination reflected light microscopy system
  • Fully coated optical system with high resolution
  • 30 degree inclined 360 degree rotatable sliding trinocular head
  • Three levels of metallurgical magnification settings, 50X, 100X & 500X
  • Three polarizing magnification powers, 50X, 100X & 500X
  • Four transmitted application settings, 40X, 100X, 400X & 1000X
  • Seven DIN standard objectives included
  • Two sets of widefield eyepiece included
  • Intensity-variable halogen EPI-illumination
  • Polarizing kit included
  • Two filter frames and one blue EPI-illumination filter included
  • 7-0"x 5-3/4" (180x145mm) extremely large mechanical stage with stain resistant finish
  • Low position stage traveling controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical parts
  • Coaxial coarse and fine focusing
  • Dual side focusing controls
  • Focusing tension control mechanism
  • 30 degree inclined 360 degree rotatable trinocular head
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes
  • Solid metal frame construction with stain resistant enamel finish
  • Dust cover included
  • Manufactured under ISO 9001 quality control standards
  • Excellent five (5) year factory warranty



Specifications :

  • Nosepiece: triple
  • Focusing Range: 1-9/16" (40mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: 30 degree inclined trinocular
  • Camera/Video Trinocular Port: 23mm universal/standard photo tube
  • Eyepieces: WF10X (18mm Field of View)
  • Metallurgical Objectives: Plan Achromatic 5X, 10X, 50X (S)
  • Achromatic Objectives: 4X, 10X, 40X (S), 100X (S,OIL)
  • Stage Dimensions: 7-0"x 5-3/4" (180x145mm)
  • Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
  • Vernier Division: 0.004" (0.1mm)
  • Illumination: halogen lamp, 6V/20W
  • Power Supply: 90V-240V wide band, CE certified



Packing List :

  • One Trinocular Compensation-Free Compound Microscope Head
  • One Microscope Body with Frame, Base and Built-in Transmitted Illumination System
  • One Pair of WF10X Widefield Eyepieces
  • Three Plan Metallurgical Objectives, 5X, 10X, 50X
  • Four Achromatic Objectives, 4X, 10X, 40X, 100X
  • One EPI Light House
  • One Set of Polarizing Kit
  • Two Filter Frames and One Blue Filter
  • One Power Cord
  • Dust Cover
  • User\'s Manual
  • Shipping Weight: 25 lbs
